NJ Series Pumps

NJ Series Pumps

ANTICO PUMPNON-METALLIC PROCESS PUMPS

NJ Series Pumps

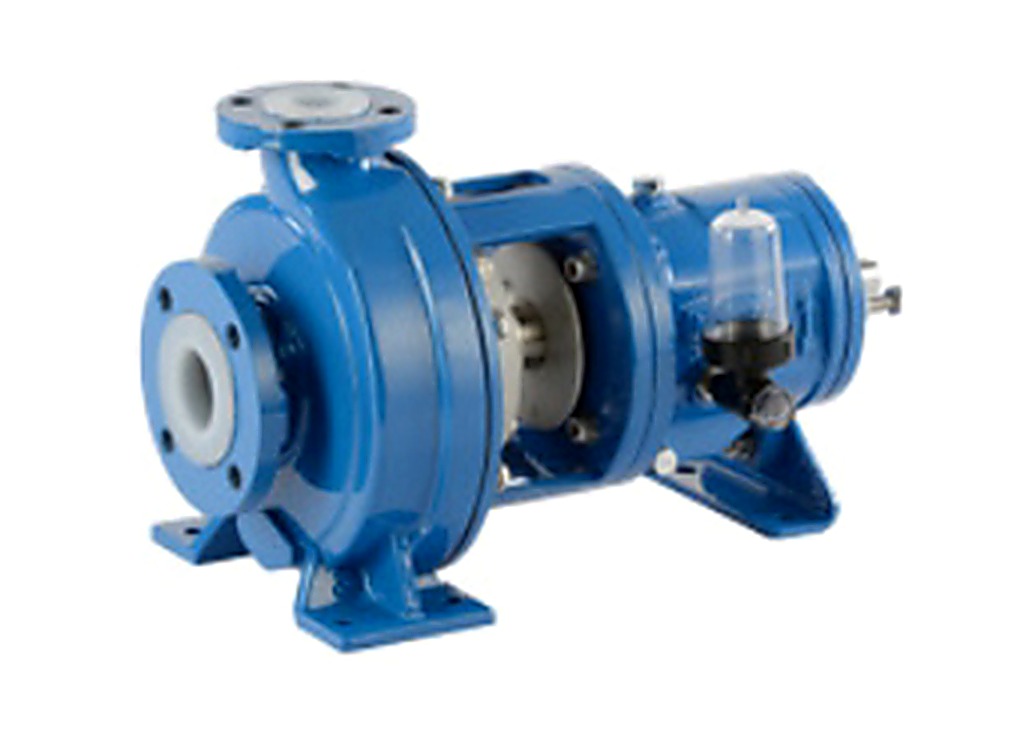

Antico NJ Series non-metallic process pump for higher-capacity industrial service.

KEY FEATURES / BENEFITS

Designed For Reliable Industrial Performance

All source-available feature and benefit points have been retained in this section.

Industrial-duty construction

Source-derived product characteristic retained for this product range.

Application-specific selection

Source-derived product characteristic retained for this product range.

Reliable fluid transfer

Source-derived product characteristic retained for this product range.

Technical guidance and service support

Source-derived product characteristic retained for this product range.

Available in configurations suited to customer requirements

Source-derived product characteristic retained for this product range.

TECHNICAL DATA

NJ Series Pumps Specifications

All source-available technical values are shown below; no numeric values have been invented.

Operating frequency50 / 60 Hz

Capacity up to210 m³/hr / 250 m³/hr

Head up to100 m / 122 m

Motor power up to55 kW / 90 kW

Viscosity up to150 mPas (cP)

Suction lift8 m (26 ft) with PC

Maximum working pressure16 bar (232 psi)

Specific gravity1.8 – 3

Minimum continuous flow2.5 m³/hr (11 US gpm)

Maximum temperaturePP-H 82°C; GFRPP 90°C; PVDF 104°C

ConnectionANSI B16.5 Class 150

Shaft sealSingle & double mechanical seals

BearingsRolling element bearings

LubricationGrease / Oil

APPLICATIONS

NJ Series Pumps Applications

Applications and industries identified in the Affinity source material.

Chemical processing

Water and wastewater

General industry

Process fluid transfer

NJ SERIES PUMPS

Looking For The Right Pumping Solution?

Contact Affinity Sales & Services for product information and technical assistance.
