NZ Series Pumps

NZ Series Pumps
NON-METALLIC PROCESS PUMPS

NZ Series Pumps

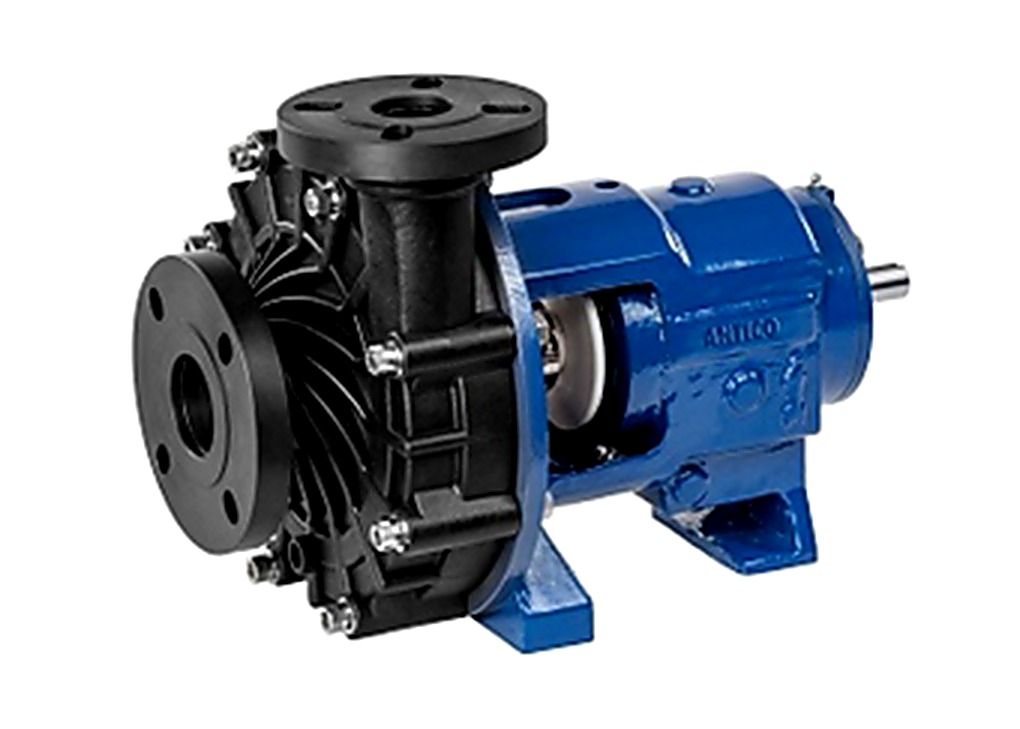

Antico NZ Series non-metallic process pump for corrosive and demanding fluid handling.

Affinity Sales & Services supports product selection, technical guidance, installation, maintenance and after-sales requirements for industrial pumping applications.

Designed For Reliable Industrial Performance

All source-available feature and benefit points have been retained in this section.

Industrial-duty construction

Source-derived product characteristic retained for this product range.

Application-specific selection

Source-derived product characteristic retained for this product range.

Reliable fluid transfer

Source-derived product characteristic retained for this product range.

Technical guidance and service support

Source-derived product characteristic retained for this product range.

Available in configurations suited to customer requirements

Source-derived product characteristic retained for this product range.

NZ Series Pumps Specifications

All source-available technical values are shown below; no numeric values have been invented.

Operating frequency50 / 60 Hz
Capacity up to40 m³/hr / 50 m³/hr
Head up to38 m / 54 m
Motor power up to15 kW / 18.5 kW
Viscosity up to150 mPas (cP)
Suction lift8 m (26 ft) with PC
Maximum working pressure10 bar (145 psi)
Specific gravity1.8 – 3
Minimum continuous flow2.5 m³/hr (11 US gpm)
Maximum temperaturePP-H 82°C; GFRPP 90°C; PVDF 104°C; ETFE 121°C
ConnectionANSI B16.5 Class 150
Shaft sealSingle & double mechanical seals
BearingsRolling element bearings
LubricationGrease / Oil

NZ Series Pumps Applications

Applications and industries identified in the Affinity source material.

Chemical processing
Water and wastewater
General industry
Process fluid transfer
